IP67 Waterproof RJ45 Connector Plug to Socket Panel Mount Connector RJ45 Network Cable RJ45 Male Cat6 Connector

Name: IP67 Waterproof RJ45 Connector Plug to Socket Panel Mount Connector RJ45 Network Cable RJ45 Male Cat6 Connector
Brand: CNLINKO
Price: 4.19 USD

Quality IP67 Waterproof RJ45 Connector Plug to Socket Panel Mount Connector RJ45 Network Cable RJ45 Male Cat6 Connector for sale

Place of Origin : Guangdong, China

Brand Name : CNLINKO

Model Number : YT-RJ45-CPE-13-001&YT-RJ45-JSX-02-001

MOQ : 10

Price : US$4.19-4.89

Type : RJ45

Application : Signal

Gender : plug and socket

Connector type : RJ45

Withstanding Voltage : 1000V dc

Durability : 500 circles

Material : PBT, BLACK

Contact : Copper Alloy

Coupling ring : /

Working Temperature : -40℃ ~ 80℃

Connecting mode : plug/unplug

waterproof rate : ip67

Rated current : 1.5A

Contact Now

IP67 Waterproof RJ45 Connector Plug to Socket Panel Mount Connector RJ45 Network Cable RJ45 Male Cat6 Connector

Product Description

According to EIA568B each ISO/IEC11801 standard conforms to D grade or CAT3e, compatible with CAT5e.
D-panel connectors, metal housing and locking system are available.
Shielding system - high frequency noise immunity and electromagnetic interference protection.

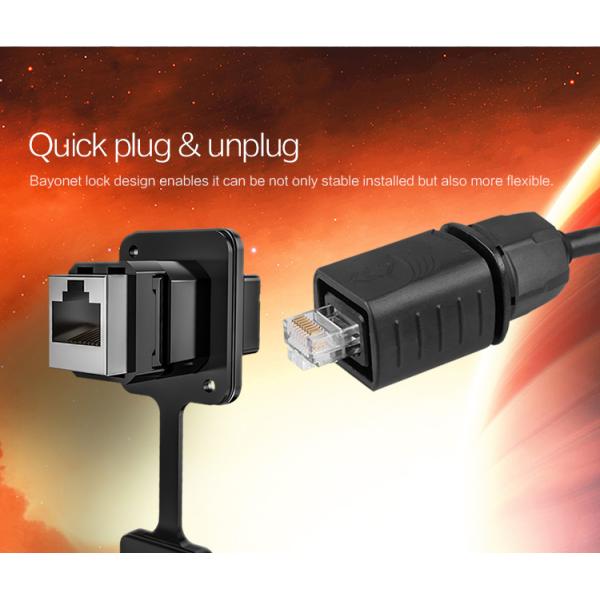

Push-pull design, safety lock system, straight-through or PCB transfer for optional installation.
The cable protector has a sturdy die-cast housing and a unique ferrule clip.
Waterproof and non-waterproof design, the product meets IP65/IP67 protection level in the assembled state.
The rugged connection system provides a solution for broadband data transmission in harsh environments.
The connector does not have a network cable and a crystal head.

Specifications

Specifications
Connecting mode	Latching Lock connect
Protection level	IP67
Cable specification	26~24AWG
Diameter range	Φ5.5mm ~Φ7mm
Contact diameter×Qty	8 Pin
Current rating(A)	5A
Operating voltage(AC.V.rms)	1000V
Withstand voltage(AC.V)1min	/
Contact resistance	<30mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Solder
Prevent the combustion level	UL94-V0
Material
Shell&insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance

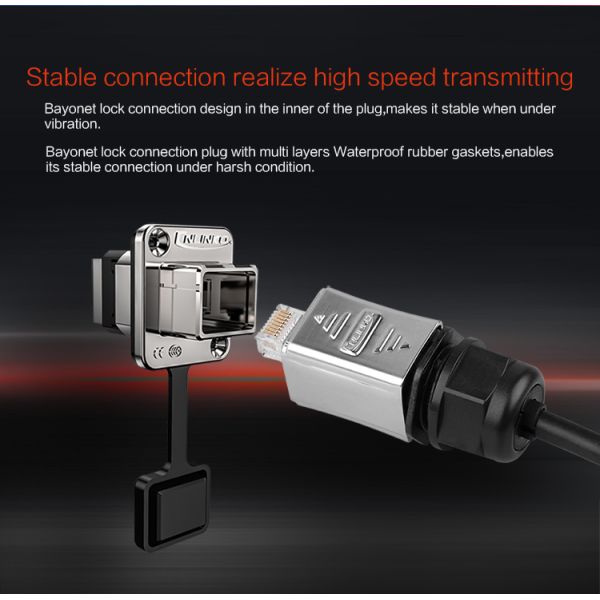

1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

IP67 Waterproof RJ45 Connector Plug to Socket Panel Mount Connector RJ45 Network Cable RJ45 Male Cat6 Connector Images
